Disc Filter

Disc Filter

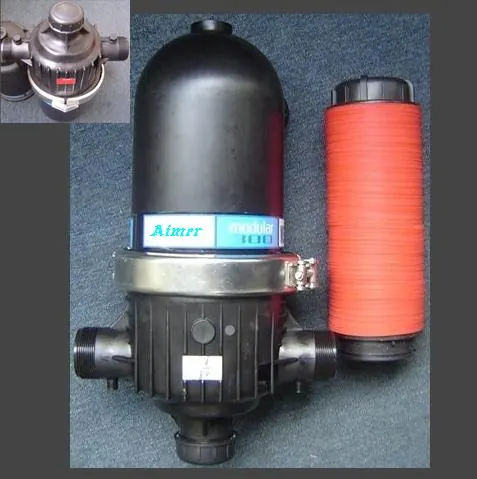

Disc Filter view 1Disc Filter view 2Disc Filter view 3

Stacked disc filter in 3/4, 1, 1.5 and 2 inch BSP, 120 or 150 mesh, 10 to 25 cubic metre per hour, 1 MPa.

Request a Quote Request a Sample

Shanghai China · Tel +86-21-68315320 · [email protected]

PLASTIC FILTER

Large filtration area allows longer intervals between flushing. Sediments accumulate on the outer face of the stacked disc, allowing clean water to flow thought the staked discs out of the filter

SPECIFICATIONS

CartridgeTypeDiscorMesh
Size3/4’’/1”/ 1.5 ”/2”(BSP)
Item No.PF-10( 10 m³ /h ),PF-20(20m³ /h ), PF -25(25m³ /h )
Mesh120 M ES H/ 150 MESH
Pre ss ure1Mpa
Flux10 m³/h, 20 m³ /h ,25m³/h

FEATURES

  • Available with flushing plastic ball valve
  • Available size: 3/4" ,1" , 1.5", 2"
  • Low friction loss
  • Disc elements provides in-depth filtration to retain organic matters
  • Disc elements have excellent resistance to most common chemicals
  • Color-coded disc replacement and screens are interchangeable
  • Available with or without manual shut off valves
  • Easy maintenance: the disc element can be extracted from the filter for easy cleaning
FAQ

Questions About Disc Filter

What filtration ratings are available for Disc Filter?
120 M ES H/ 150 MESH
What sizes does Disc Filter come in?
3/4’’/1”/ 1.5 ”/2”(BSP)
