Recessed

Super Slim LED Aluminum Channel

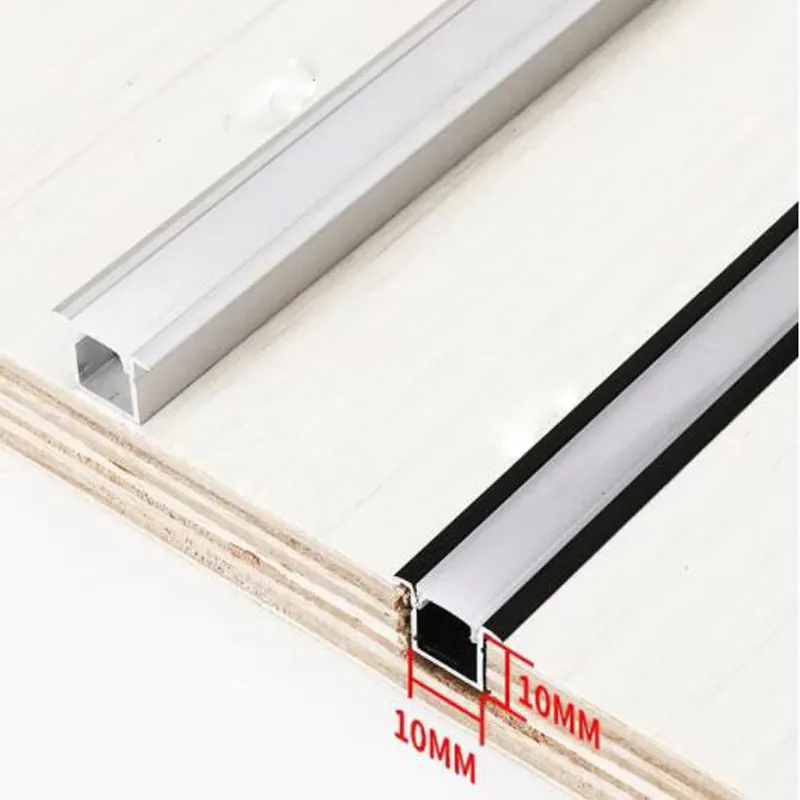

Super slim led aluminum channel is aluminum extrusion products,using for interior decoration,high quality,good price,excellent service. This aluminum channel comes with two ultra thin size: 10mmx10mm or 8mmx9mm.

Request A Quote Talk To An Engineer Email Us

Custom builds to your drawing
Small and sample orders accepted
OEM and ODM welcome

Overview

Product Overview

Aluminum Led Profile Super Slim Led Aluminum Channel For Led Garage Door Lights, Led Wall Light Bars, Led Down Light Bars And Led Panel Light Bars.-shipment :by freight or by air or by sea

Led strip lights come with separate packages, not sticking in the profiles.

LED strips aluminum channel is a new-style light box,it is designed by ourselves and produced by our factory.This channel can cut to different size and shape with cnc machine.And this series of product are very popular on the market.

Highlights

Key Features

Item No,: SC-SMD2835X120F-V12
CRI>80Ra
BELECOME LIGHTING

Technical Data

Specifications

Configuration	U-Shape
LED Strip Width	5-8mm
Channel Finish	Anodized Extruded aluminum, Black, Silver
Cover Material	Frosted Plastic
Length	0-3m
Suitable flexible led strips	DC12V 2835 120led per meter
LED Type	SMD2835
LED QTY.	120LED/Meter 600led 5m 16.4ft
Input Voltage	12V DC
Wattage (max)	14Watt/Meter
Cuttable	Every 6LED a unit can be cut
Lumen Flux	100LM/W 1400lm/meter
CCT	Cool White 6000-6500K Warm White: 3000-3500K
PCB Width	8mm

Detail Views

Product Gallery

Super Slim LED Aluminum Channel detail 1

Super Slim LED Aluminum Channel detail 2

Super Slim LED Aluminum Channel detail 3

Super Slim LED Aluminum Channel detail 4

Super Slim LED Aluminum Channel detail 5

How We Work

Customisation and Ordering

Made To Your Design

Seven Colors Lighting makes products to your design, drawing or idea. Send a sketch or a specification and the team will work it out.

Small and Sample Orders

Small order quantities and sample orders are accepted, with OEM and ODM production available.

Export Experience

Most products carry CE, ROHS, PSE, SAA and ETL approval and are exported to more than 30 countries and regions.

Frequently Asked Questions

Which LED Is Used?

The light source is SMD2835.

What Input Voltage Does Super Slim LED Aluminum Channel Work On?

It works on 12V DC.

What Power Options Are Available for Super Slim LED Aluminum Channel?

Available power: 14Watt/Meter.

Which Colour Temperatures Are Available?

Available colour temperature: Cool White 6000-6500K Warm White: 3000-3500K.

Can This Product Be Customised?

Yes. Seven Colors Lighting states that customising is available for any product and that items can be made to your design, drawing or idea.

Do You Accept Small Orders and Sample Orders?

Yes. Seven Colors Lighting accepts small orders and sample orders, along with OEM and ODM work, and states that small order quantities can still get a good price.

Which Approvals Do Your Products Carry?

According to Seven Colors Lighting, most of its products have CE, ROHS, PSE, SAA and ETL approval, and are exported to more than 30 countries and regions including the USA, Japan, Australia, Canada, Italy and Germany.
