Quantum Board Plant Lights
LED Grow Light for Plants Panel Quantum 100W – 600W
Quantum Board Grow Light can be 150W 300W 600W 900W available. And it features with high efficiency output and wide wave length.
- Custom builds to your drawing
- Small and sample orders accepted
- OEM and ODM welcome
Overview
Product Overview
LED Grow Light for Plants can be 100W 200W 400W 600W 1000W available. And it features with high efficiency output and wide wave length. This led grow light 100W is equivalent to 200 Watt T5, 250 Watt CFL, or 200 Watt metal halide. It is greatly suitable for small grows. If combining use.This led grow light bulb can group up freely with 2pcs,4pcs or 6pcs. And max can reach 1000W. Led grow light diy can be appled to a big garden and good for General Use/Flowering.
LED grow lights for indoor plants 100W are made from 230pcs of Epistar chip SMD2835 warm white ( equal toSamsung 301b), 8pcs of 660nm and 2pcs of 730nm . Different from other Quantum board led grow lights, we add 8pcs of 660nm and 2pcs 730nm. As we know, 660nm has an very important function on Photosynthesis. 730nm can trigger the Emerson effects to enhance the 660nm function.This lights will play a big role during the plant growth and flowerring.
Highlights
Key Features
- Retail online Store
- Quantum Board LED Grow Light
- FEATURES & SPECIFICATIONS
- 230pcs SMD 2835 warm white + 8pcs of 660nm+2pcs 730nm
- LED Grow Light for Plants Panel Quantum White Light for Healthier Plants
- Passive Cooled Design
- Ideal for Veg, Flowering and Supplement Light
- wide range working vlotage AC100-277VAC,compatible with worldwide electricty standards. DC30-55V output voltage,with high efficiency output. It is the safe voltage and will not do harm to human.Earth wire connects with the aluminum body also will prevent the electric shock.
- Meanwell power supply rests on 4 screws, 3mm away from the aluminumheat sink, not directly touch the heat sink. Keep the heat escape from our quantum board led grow light fast.
- 3 Year Warranty
- US,AU, EU Standard
- 100CM/39.4” US, AU, EU plugs with IP68 waterproof connector
- 4pcs stainless steel hanging chain + 50cm hanging hook
- can use them both indoor or outdoor
- easy to hang everywhere you want
Technical Data
Specifications
| Power | 100 Watts,200Watts,400Watts,600Watts,1000Watts (Non Dimmable) |
|---|---|
| Total Output | 272 PPF |
| System PPF Efficacy | 2.7 μmol/joule |
| Spectrum | 350nm-1000nm, pink wave: 450nm |
| Flowering Footprint | 2′ x 2′ |
| Veg Footprint | 3’ x 3’ |
| Recommended Hanging Height | 18′ – 24″ |
| Material | Aluminum Heat Sink Board + High thermal conductivity PCB |
| Voltage Range | 100- 277 VAC |
| Dimensions | 300X240X4mm/11.8” X 9.4” X 0.16” (With Driver Attached to the Back of the Board) |
| IP Rating | IP65 waterproof |
| led driver | Taiwan Meanwell IP67 waterproof driver |

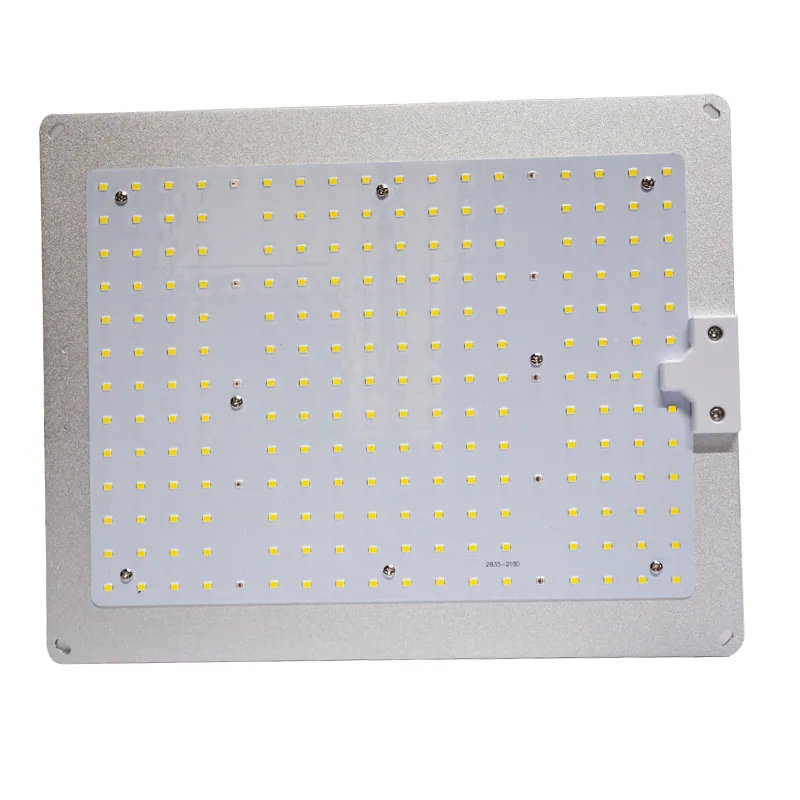

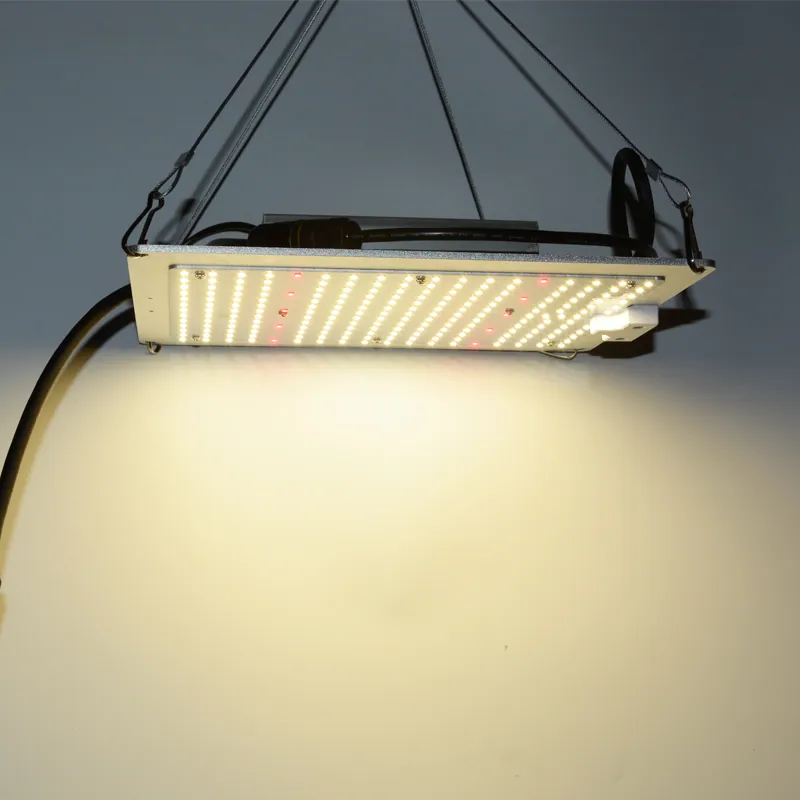

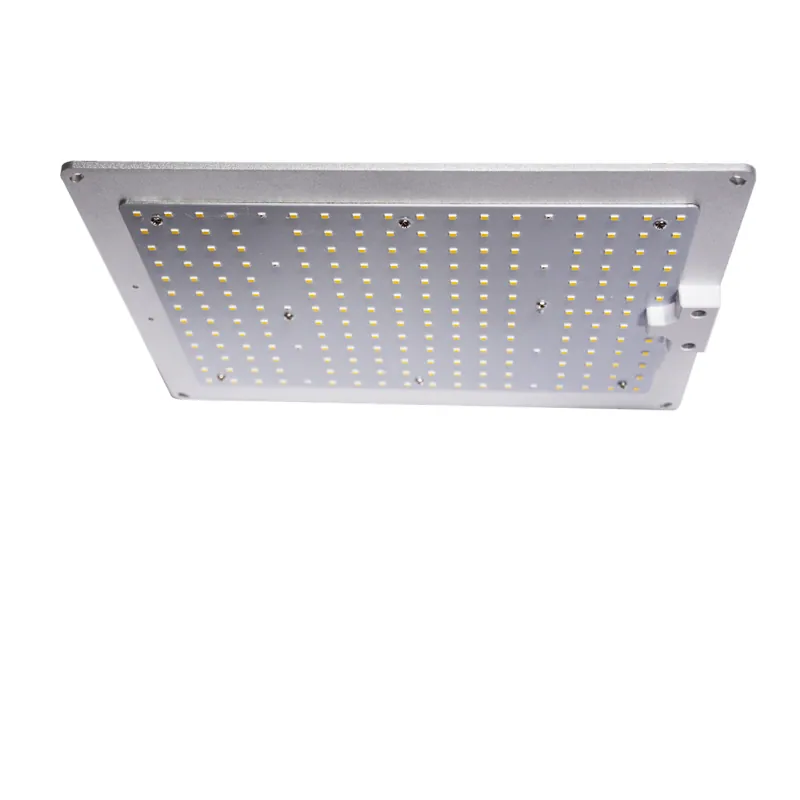

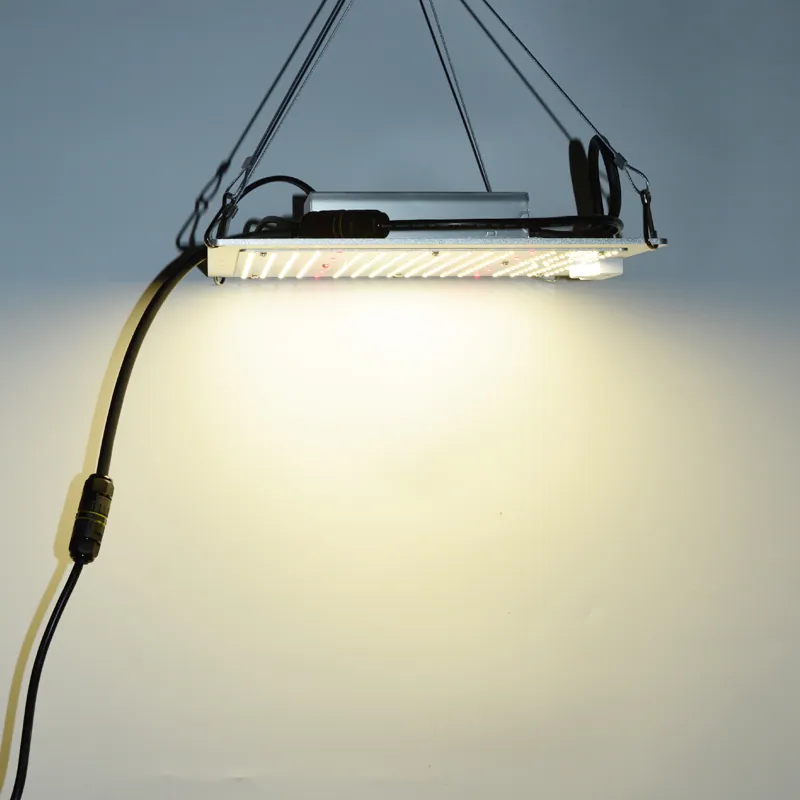

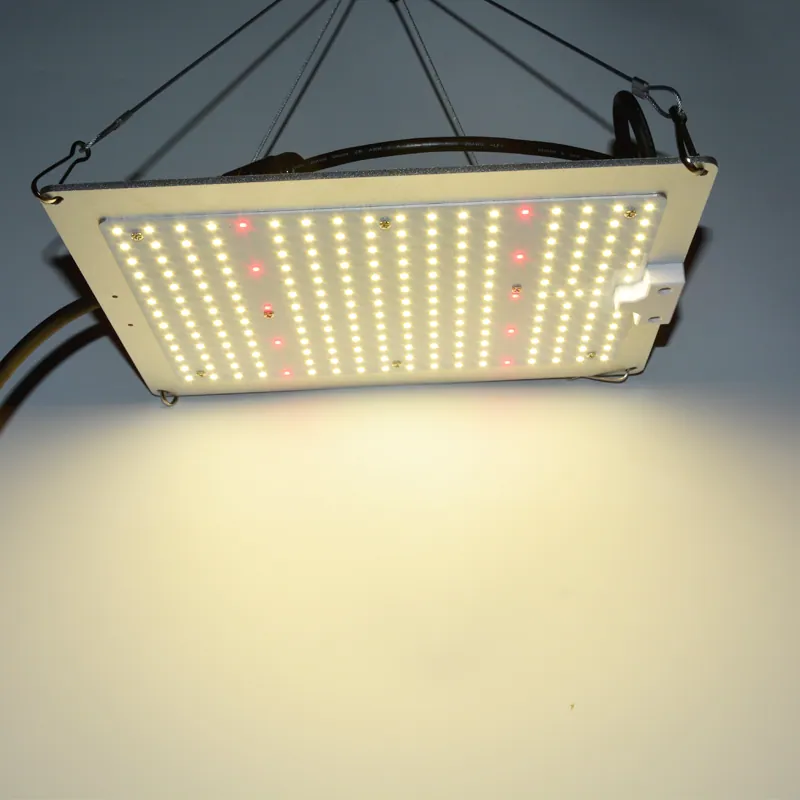

Detail Views
Product Gallery
How We Work
Customisation and Ordering
Made To Your Design
Seven Colors Lighting makes products to your design, drawing or idea. Send a sketch or a specification and the team will work it out.
Small and Sample Orders
Small order quantities and sample orders are accepted, with OEM and ODM production available.
Export Experience
Most products carry CE, ROHS, PSE, SAA and ETL approval and are exported to more than 30 countries and regions.
Frequently Asked Questions
What Power Options Are Available for LED Grow Light for Plants Panel Quantum 100W – 600W?
Available power: 100 Watts,200Watts,400Watts,600Watts,1000Watts (Non Dimmable).
What Material Is LED Grow Light for Plants Panel Quantum 100W – 600W Made From?
The material is Aluminum Heat Sink Board + High thermal conductivity PCB.
What Are the Dimensions of LED Grow Light for Plants Panel Quantum 100W – 600W?
The dimensions are 300X240X4mm/11.8” X 9.4” X 0.16” (With Driver Attached to the Back of the Board).
What Is the IP Rating of LED Grow Light for Plants Panel Quantum 100W – 600W?
The IP rating is IP65 waterproof.
Can This Product Be Customised?
Yes. Seven Colors Lighting states that customising is available for any product and that items can be made to your design, drawing or idea.
Do You Accept Small Orders and Sample Orders?
Yes. Seven Colors Lighting accepts small orders and sample orders, along with OEM and ODM work, and states that small order quantities can still get a good price.
Which Approvals Do Your Products Carry?
According to Seven Colors Lighting, most of its products have CE, ROHS, PSE, SAA and ETL approval, and are exported to more than 30 countries and regions including the USA, Japan, Australia, Canada, Italy and Germany.
