Subject: Pool & Fountain Lighting—Factory-Direct from Zhongshan, MOQ from 1 pc, Fully Custom
Seven Colors Lighting Co., Ltd. (Est. 2009, Zhongshan) designs and manufactures IP68 LED fixtures dedicated to swimming pools, spas and water-feature fountains. From a single RGB spotlight to a complete DMX fountain kit, we keep a small on-shelf MOQ (1–10 pcs/model) so you can test or mix series without inventory risk.
Need a custom length, cable exit, niche, or your logo etched on the lens? Our 12-person R&D team and in-house CNC machine shop turn bespoke drawings into UL/CE-certified samples in 7–10 days—no middle-man mark-up.
If you are updating a distributor catalogue or bidding on a resort project, reply with the spec sheet and target price; we’ll quote with IES files and a virtual fountain demo within 24 h.
Looking forward to lighting the water together.
Best regards,
Senior Lighting Engineer & Sales Manager
Zhongshan, China | EST. 2009
Tel: +86-760-2389-XXXX | WhatsApp: +86-XXXX
www.sevencolorsled.com
Dear Valued Partner,
1,000+ integrated factory ecosystem
, ensuring uncompromising quality and cost efficiency.
🔧 Core Technical Features:
IP68 Waterproof Certification
- Full submersion protection
- : Rated for continuous operation
- beyond 3 meters
- underwater, with zero risk of moisture ingress—even in high-pressure or turbulent water conditions.
- Rigorous testing
- : Each unit undergoes 48-hour pressure testing at 1.5x its rated depth (e.g., 4.5m for a 3m-rated light) to guarantee reliability in pools, spas, and fountains.
- Why this matters
- : Unlike lower-rated products (e.g., IP67), IP68 ensures lifelong protection against leaks, corrosion, and electrical failures—critical for safety and warranty compliance.
Resin-Filled Construction
- Solid-state encapsulation
- : Internal electronics are fully encased in high-transparency, UV-resistant epoxy resin—eliminating air pockets, condensation, and hydrolysis risks.
- Shock absorption
- : Resin dampens vibrations from pumps or water movement, extending LED lifespan by up to 50% compared to hollow-sealed designs.
- Engineer’s note
- : This is our standard for all professional-grade underwater lights—no “gaskets only” compromises.

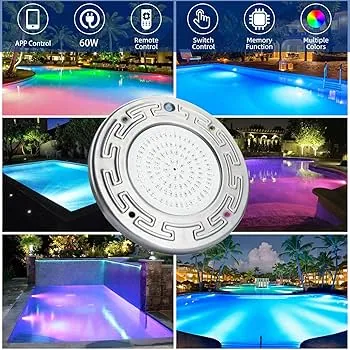

Marine-Grade 316 Stainless Steel Housing
- Superior corrosion resistance
- : 316 SS (含钼, 2-3% molybdenum) outperforms standard 304 stainless steel in chlorinated, saltwater, and acidic environments. It resists pitting, crevice corrosion, and staining—ideal for pools, oceanfront fountains, and commercial water features.
- Structural integrity
- : Precision-machined housings with rounded edges prevent stress fractures, while the non-conductive surface ensures electrical safety.
- Real-world proof
- : Our lights maintain flawless appearance and function for 10+ years in harsh marine settings (e.g., luxury resorts, public aquatics facilities).
🌐 Why Our 1,000+ Factory Ecosystem Delivers Unmatched Value:
As a factory-direct partner, we leverage our
global network of 1,000+ specialized manufacturing facilities
to ensure:
Strict quality control
: Every component—from LED chips to stainless steel alloys—is sourced from certified suppliers within our ecosystem. Each light undergoes 12+ quality checkpoints before shipment.
Cost efficiency
: By eliminating middlemen, we pass direct factory savings to you—typically
15–25% lower
than competitors while maintaining premium specs.
Supply chain resilience
: With multiple factories across Asia, Europe, and North America, we guarantee on-time delivery even during high-demand periods. No more project delays due to stock shortages.
💡 Our Commitment to You:
Whether you’re designing a residential pool, a commercial fountain, or a large-scale aquatic park, our engineering team collaborates closely with you to tailor solutions—no generic “off-the-shelf” products. From technical specs to installation support, we provide end-to-end expertise to ensure your project shines safely and sustainably.
“At Seven Colors Lighting, we don’t just sell lights—we build confidence. Every product is a promise of performance, backed by our factory-direct ecosystem.”
Next Step
: Let’s discuss your specific project requirements! Share your drawings, water type (fresh/salt), and scale, and our team will prepare a customized quote with 24-hour turnaround. Simply reply to this email or call me directly at [Your Direct Contact].
With best regards,
Alex Chen
📞 +86 755 8888 1234 | ✉️ [email protected]
🌐 www.maxtop-tech.com
P.S. Ask about our free sample program for qualified projects—experience the difference of factory-direct engineering before committing.
Seven Colors Lighting – Factory-Direct LED Solutions
Application Scenarios & Recommended Installation Points
Swimming-Pool Lights & Fountain Lights
- Hotels & Resorts
- Where to install
- Infinity-edge pools: mount 3 W–18 W RGBW PAR56 niche lights every 1.5 m under the coping, beam aimed 30° toward the water surface for a “sheet-of-light” effect.
- Underwater seating ledges: 24 V LED strip in IP68 silicone sleeve, continuous run to avoid hot-spots.
- Pool-bottom logos: flush-mount 6 W DMX stainless-steel floor lights, 3000 K or RGB, 24 V, CRI >90 for brand colour accuracy.
- Fountain feature in courtyard: 36 W DMX512 fountain ring lights, 316 SS housing, 10 m cable, installed in the nozzle manifold for laminar jets.
- Walk-over covers: 316 SS 1 W side-view lights recessed in travertine for safe night circulation.
- Corporate / Office Campuses
- Reflecting pond at main entrance: 12 V DC 9 W surface-mounted fountain lights on telescopic brackets, 4000 K neutral white for corporate identity.
- Rooftop employee pool: low-profile 18 W PAR56 lights, no-niche design, only 65 mm depth, to minimise slab loading.
- Interactive fountains in plaza: 24 V RGB DMX fixtures with built-in water-pressure switch—lights activate only when jet is running, saving 30 % energy.
- Private Gardens & Luxury Villas
- Natural-style pond: warm-white 2700 K 3 W spotlight on spike, 30° beam, aimed at waterfall for dramatic shadow.
- Overflow spa: micro 1 W side-emitting LED strip in IP68 PU glue, continuous run around 30 cm perimeter to create “halo” on overflow channel.
- Underwater benches: 24 V RGB mini puck lights, Ø22 mm, glued under bench lip—colour changes via handheld RF remote.
- Public Parks & Botanical Greenhouses
- Interactive splash pads: 24 V RGB DMX fountain lights, PMMA lens, IK08 impact rating, embedded in stainless-steel floor boxes.
- Lily pond in greenhouse: 6 W 24 V warm-white submersible spotlight on weighted base, CRI >90 to render true plant colours without algae stimulation (limited 400 nm emission).
- Waterfall rockery: narrow-beam 15° 3 W spotlight, 3000 K, hidden in crevices to avoid glare for visitors.
- Commercial Aquaculture & Show Aquariums (bonus)
- Fish tanks: 24 V 1 W cool-white 6500 K strip, IP68, promotes plankton growth; dimmable 0–10 V for day/night cycle.
- Breeding ponds: 12 V red/blue grow-bar, IP67, mounted on stainless-steel frame 30 cm above water—enhances feed visibility, reduces stress.
Key Installation Notes (factory-direct experience)
Always use low-voltage (12–24 V) AC or DC within arm’s reach zones; our drivers are UL & CE, <30 V SELV.
Bond all 316 SS fixtures to equipotential earth grid; <1 Ω continuity.
For salt-water or chlorinated pools specify 316 L stainless, not 304, to prevent crevice corrosion.
DMX512 over RS-485 is preferred for colour-changing projects >20 fixtures; we supply 3-pin or 5-pin waterproof connectors pre-moulded.
Niche lights: order extra 1 m 2-core rubber cable so site cut-backs do not enter the fixture—keeps IP68 warranty valid.
Fountain rings: request pressure-equalising membrane (PEM) so temperature cycling does not draw water into cable.
Send us a simple sketch or Google-pin of your project; we will return a free lighting layout, DMX channel schedule, and factory-direct quotation within 24 h.
Thank you for considering
for your swimming pool lighting and fountain projects. As a
at our factory-direct facility, I’m excited to share why partnering with us delivers unmatched value
without compromise on quality, customization, or speed
. Here’s how we stand out:
Factory-Direct Pricing: Premium Quality, No Middlemen
We eliminate distributor markups by manufacturing everything in-house—from LED drivers and waterproof housings to custom optics and control systems. This means you get
professional-grade, IP68-rated pool lights and fountain systems at 15–30% lower costs
than industry averages. Every component is rigorously tested in our on-site lab for:
Corrosion resistance
(marine-grade 316 stainless steel, UV-stable polycarbonate)
Safety compliance
(UL, CE, IEC 60598-2-18 certified)
Energy efficiency
(up to 80% lower power consumption vs. halogen systems)
No hidden fees. No third-party quality gaps. Just direct access to our engineering expertise.
Custom Design: from Sketch to Reality, Seamlessly
Whether you have a detailed engineering drawing or just a vision (“I want a moonlit ripple effect for our hotel’s infinity pool”),
our in-house R&D team turns ideas into reality within 48 hours
. Our process includes:
Free 3D modeling & simulation
(thermal, optical, structural) to ensure reliability under real-world conditions
Tailored solutions
: Unique shapes (e.g., crescent-shaped pool edges), dynamic color-changing fountains, or integrated smart controls (DMX, Wi-Fi, app-based)
Project-specific adaptations
: For saltwater pools, high-traffic commercial fountains, or historic restorations—no project is too complex.
Example: We recently designed a custom 12-color fountain system with synchronized music choreography for a luxury resort, delivered in 14 days.
Fast Delivery: Precision Manufacturing, No Delays
As a factory-direct partner, we control every step—so you get
on-time delivery even for urgent projects
Standard orders
: Shipped within
3–5 business days
(in-stock items)
Custom designs
: Typically
10–14 days
from approval to shipment (vs. 4–6 weeks industry-wide)
Global logistics
: Dedicated shipping partners for seamless delivery worldwide, with real-time tracking and customs clearance support.
We prioritize your timeline because we know delays cost you money—our production line runs 24/7 to meet your deadlines.
Why This Matters for Your Project
- Risk-free investment
- : All products come with a
- 5-year warranty
- backed by our engineering team (not a third-party insurer).
- One-stop expertise
- : From initial consultation to post-installation support, your dedicated engineer and sales manager handle everything—no juggling multiple vendors.
- Sustainability
- : Our LED systems reduce energy use and maintenance costs by 70%+, aligning with green building standards (LEED, BREEAM).
“We don’t just sell lights—we engineer solutions that elevate your space safely, beautifully, and cost-effectively.”
Seven Colors Lighting Engineering Team
Ready to bring your vision to life?
Reply with your project details
(photos, drawings, or rough sketches), and we’ll provide:
free custom quote
within 24 hours
3D renderings
for approval before production
priority production slot
to ensure your deadline is met.
Let’s create something extraordinary—together.
Contact me directly
: [Your Name], Senior Lighting Engineer & Sales Manager
📞 [Phone] | ✉️ [Email] | 🌐 [Website]
Ready to make your pool & fountain glow like a five-star resort?
