Solar Street Lights

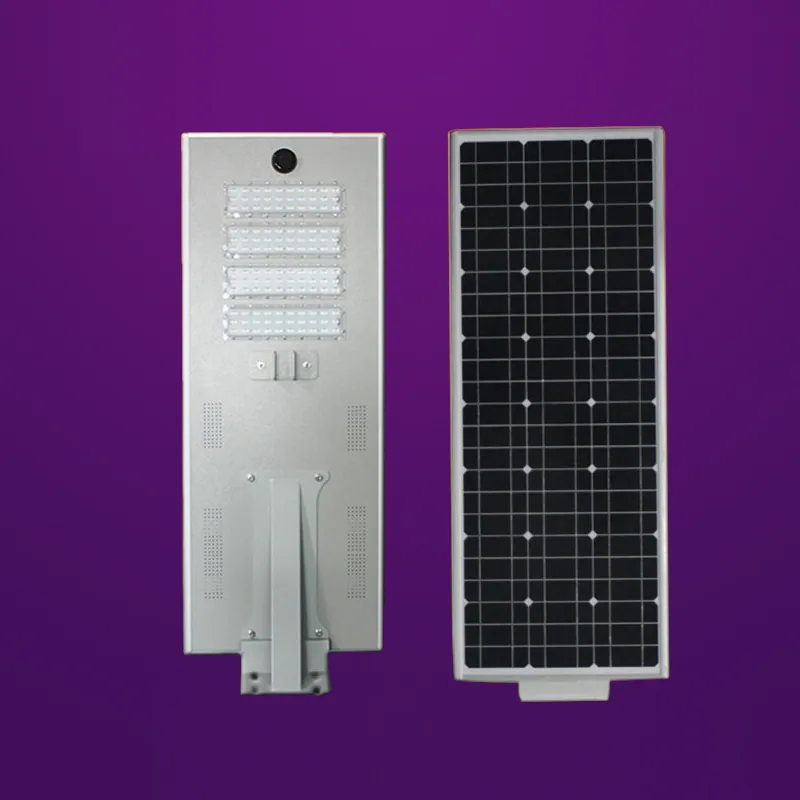

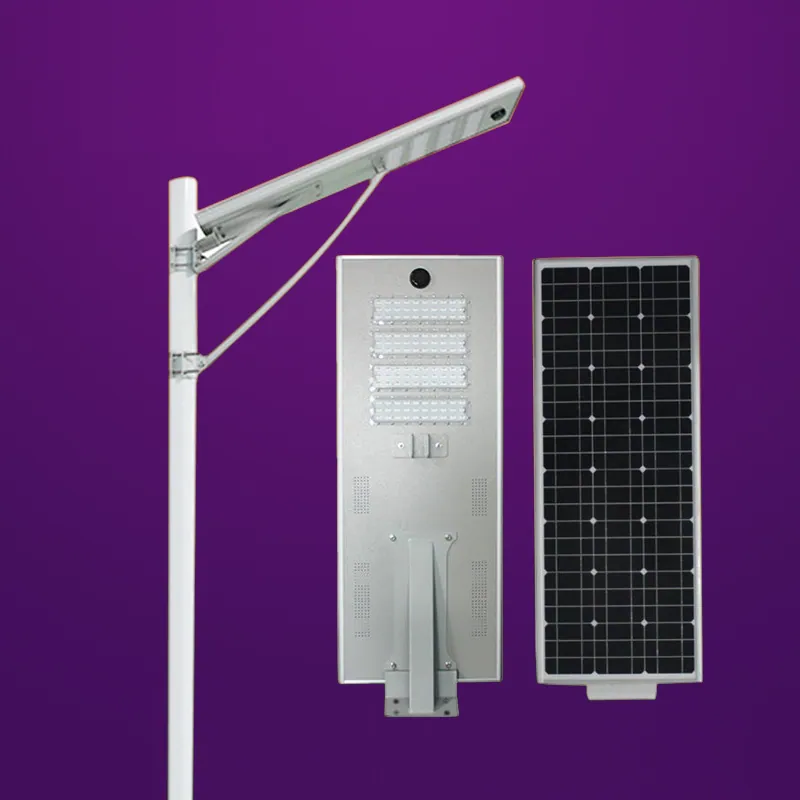

120W Integrated Solar LED Street Light with Motion Sensor
120W Integrated Solar LED Street Light with Motion Sensor which can also be called the all in one solar garden light, combines the high efficient solar panel, Li-battery can be used for 8 years, high brightness leds, intelligent controller, and anti-burglary installation support together.
- Custom builds to your drawing
- Small and sample orders accepted
- OEM and ODM welcome
Overview
Product Overview
The integrated led street light, which can also be called the all in one solar garden light, combines the high efficient solar panel, Li-battery can be used for 8 years, high brightness leds, intelligent controller, and anti-burglary installation support together. It uses several practical and good control technology, such as mini-controller and human infrared induction, and unites the integrated design to satisfy the needs of low consumption brightness, long using time and maintenance free, and the performance of water-proofing and heat dissipation are also perfect.
Integrated design without stay wire, easy installation, low cost in transportation, several installation methods are provided, and the lamp post can be local materials, such as the iron post, wood, bamboo, plastics and so on;
The Li-battery with high capacity and long using time is applied, and the using time can be 8 years;
Using the alloy material to build the main structure, which has good performance in rust protection and anti-corrosion.
The modular design conception is adopted, which makes the installation, maintenance and repair much easier;
Segmentation power control. In the midnight, there will be little people on roads, the solar light can reduce the brightness to save energy and increase the practicability.
Best components are used in the production of the integrated solar street light, and it will work for long period after installation;
Highlights
Key Features
- Using solar energy to save electric energy to protect resources on earth;
- Stay wire is not needed, and the installation is quite easy;
- 0W-01
- Working TEMP( ℃ ):-25~+65℃
Technical Data
Specifications
| Working mode | During working time ,when there are movements detected ,the lamp switches to 100% capactity ,when movements gone ,the lamp turns to 50capacity to save power |
|---|---|
| Model NO. | SC-SL12 |
| Solar Panel | high efficiency imported Monocrystalline silicon solar cell |
| Battery Type | Lithium Battery 12V 72AH |
| LED Power | 100W/120W |
| Working Mode | Motion Sensor Induction,Light Control,Time Control |
| Lumen | 110-130LM/W |
| CCT | 6500-7000K |
| Lighting Viewing Angle | 65°x 120°(bar wing street light distribution ) |
| Sensor distance | 8-12m |
| Mounting height(m) | 9-10m |
| Dimension | 1190X490X29MM |
Detail Views
Product Gallery







How We Work
Customisation and Ordering
Made To Your Design
Seven Colors Lighting makes products to your design, drawing or idea. Send a sketch or a specification and the team will work it out.
Small and Sample Orders
Small order quantities and sample orders are accepted, with OEM and ODM production available.
Export Experience
Most products carry CE, ROHS, PSE, SAA and ETL approval and are exported to more than 30 countries and regions.
Frequently Asked Questions
What Is the Model Number of 120W Integrated Solar LED Street Light with Motion Sensor?
The item number is SC-SL12.
What Power Options Are Available for 120W Integrated Solar LED Street Light with Motion Sensor?
Available power: 100W/120W.
Which Colour Temperatures Are Available?
Available colour temperature: 6500-7000K.
What Are the Dimensions of 120W Integrated Solar LED Street Light with Motion Sensor?
The dimensions are 1190X490X29MM.
Can This Product Be Customised?
Yes. Seven Colors Lighting states that customising is available for any product and that items can be made to your design, drawing or idea.
Do You Accept Small Orders and Sample Orders?
Yes. Seven Colors Lighting accepts small orders and sample orders, along with OEM and ODM work, and states that small order quantities can still get a good price.
Which Approvals Do Your Products Carry?
According to Seven Colors Lighting, most of its products have CE, ROHS, PSE, SAA and ETL approval, and are exported to more than 30 countries and regions including the USA, Japan, Australia, Canada, Italy and Germany.
